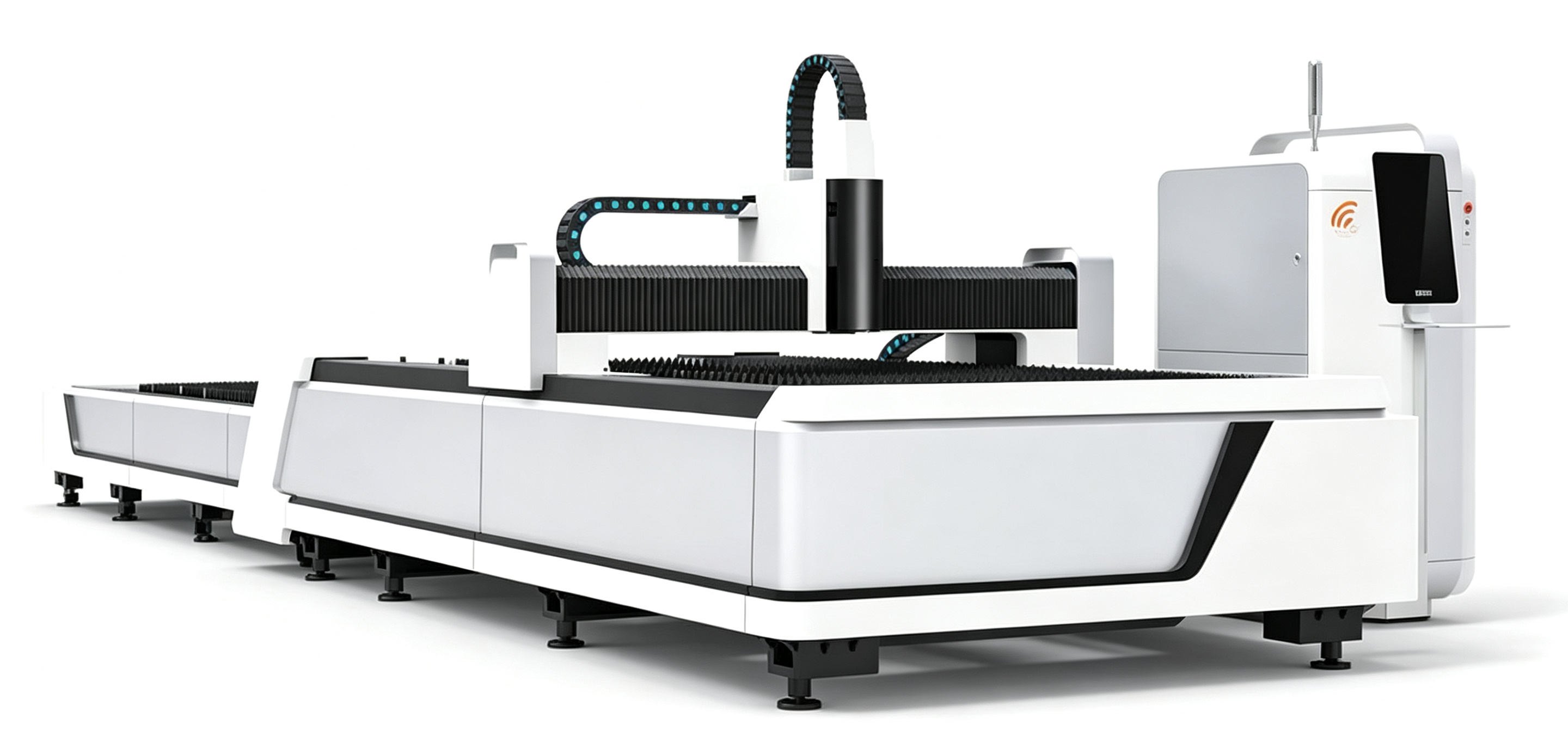

For laser cutting equipment, the X-axis and Y-axis of the operating mechanism are required to precisely and high-speed control the motion trajectory of the laser cutting head. The Z-axis shall steadily regulate the height of the cutting head to maintain a constant distance between the cutting head and the sheet metal, as well as coordinate and control process actions including laser emission, piercing, and auxiliary gas switching in conjunction with the laser generator.

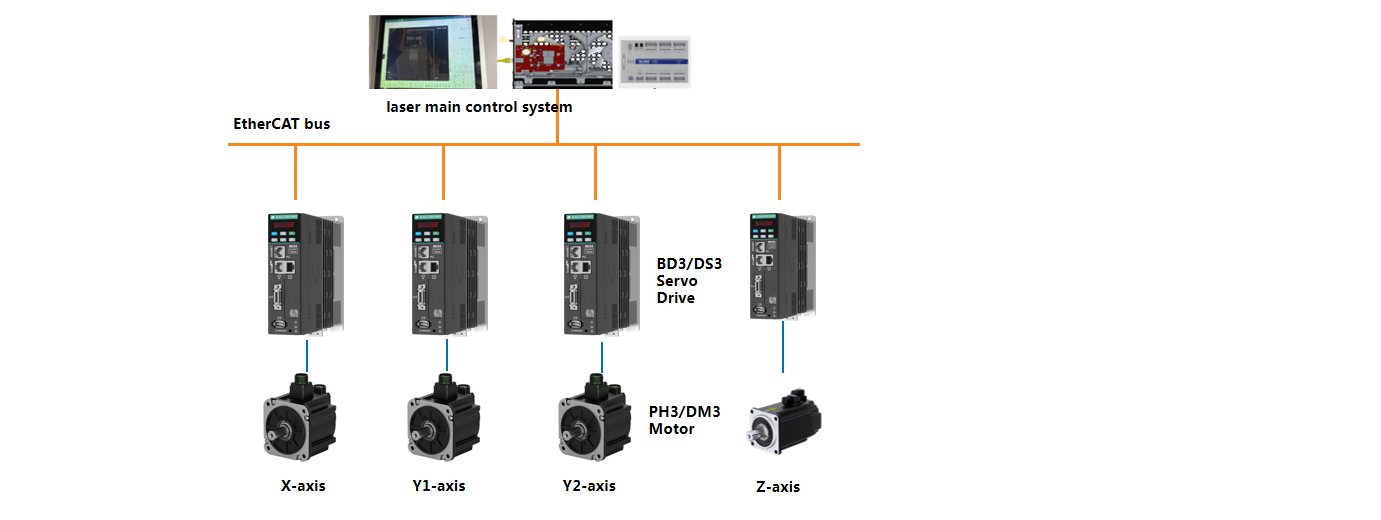

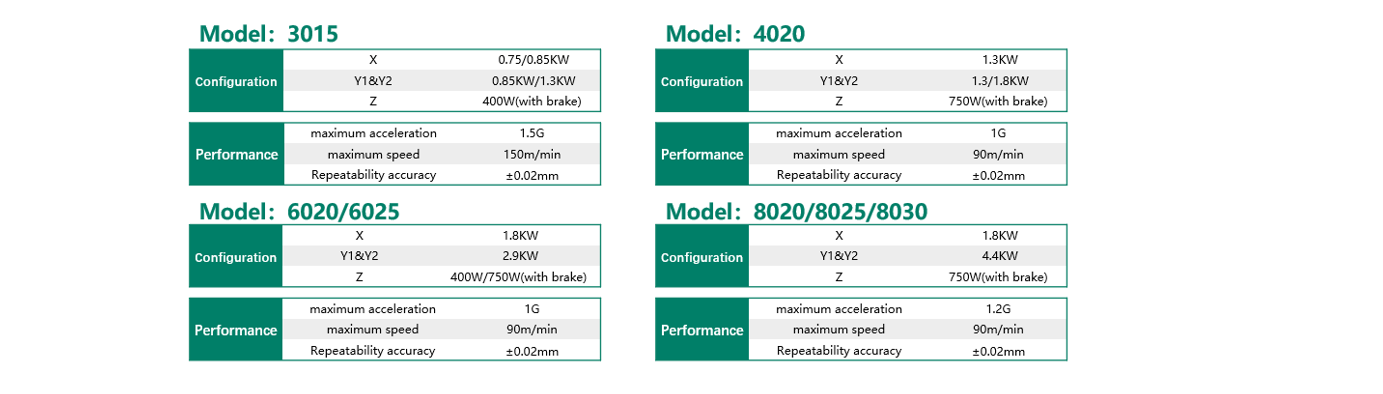

Servotronix Motion (GTC) offers BD3/DS3+PH3/DM3 series servo products. The axis configurations and performance requirements for common specifications of laser cutting equipment are listed as follows:
Core Processes
Adopt non-contact laser processing technology to perform precision drilling and etching on workpieces via high-energy laser beams.

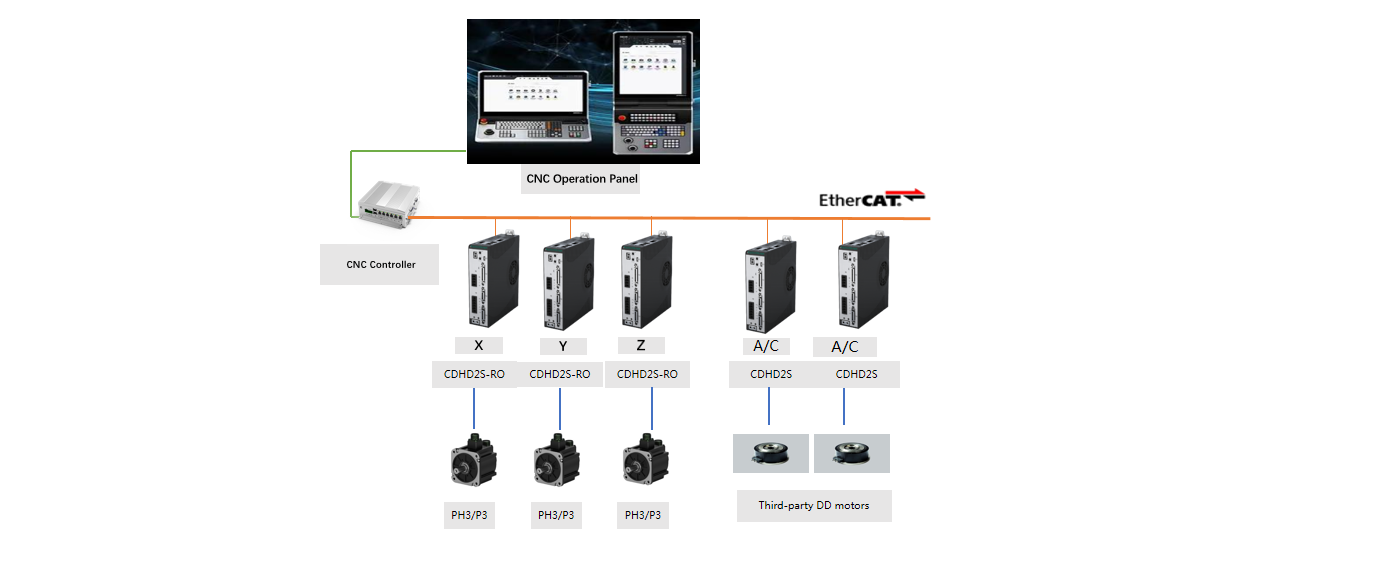

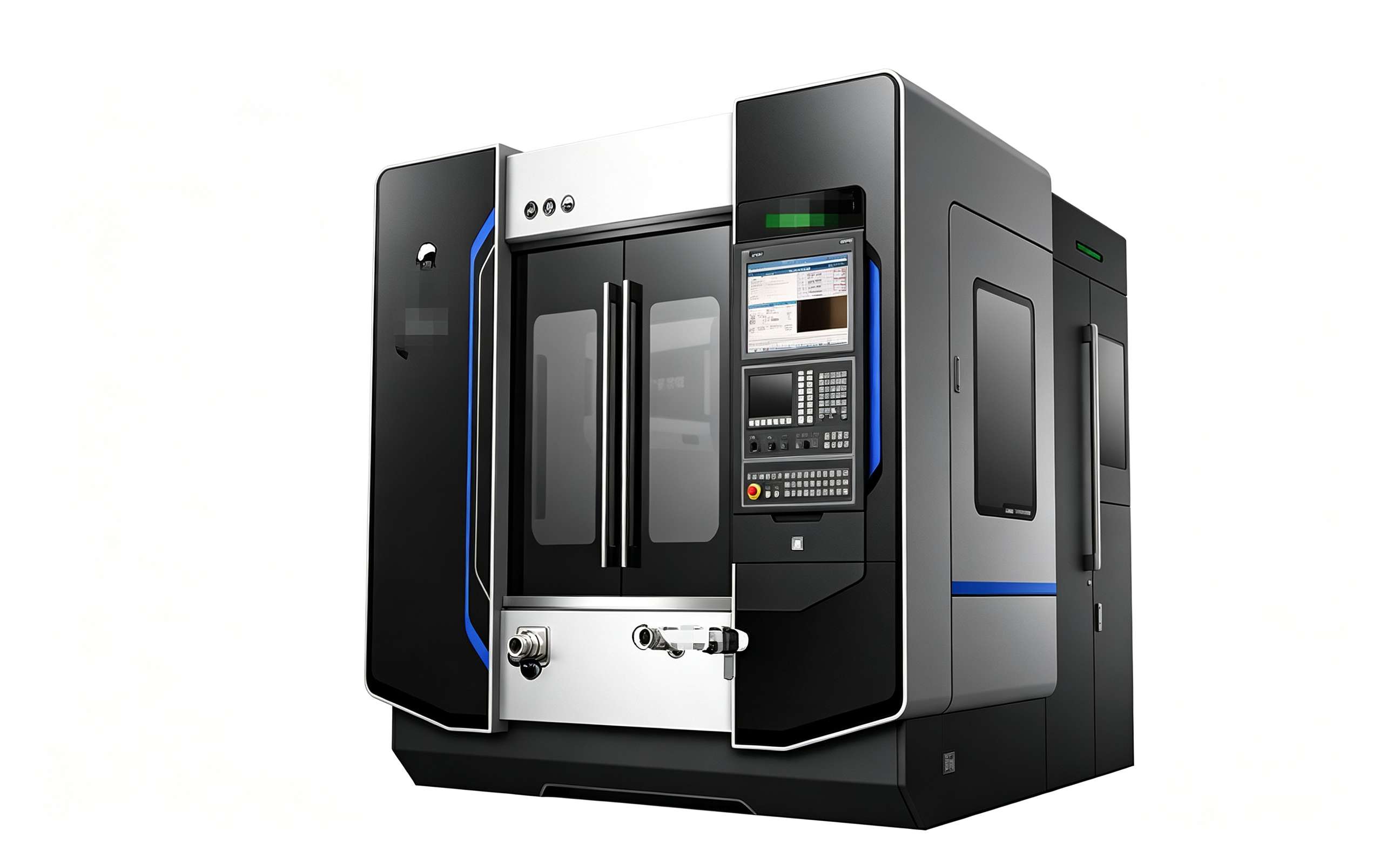

Five-Axis Coordinated Control
· X/Y/Z lead screw transmission axes: Drive the laser head for rapid 3D positioning; full closed-loop control with linear scales guarantees motion accuracy.
· A/C rotary axes: Adjust workpiece angles to realize complex surface machining. Combined with laser galvanometers for dynamic optical path adjustment, processing flexibility is greatly improved.
Technical Highlights
The laser galvanometer system is deeply integrated with five-axis linkage, delivering high-speed response within 60 ms. It is suitable for high-precision, small-batch and diversified processing scenarios.
