3C electronics industry - Solutions

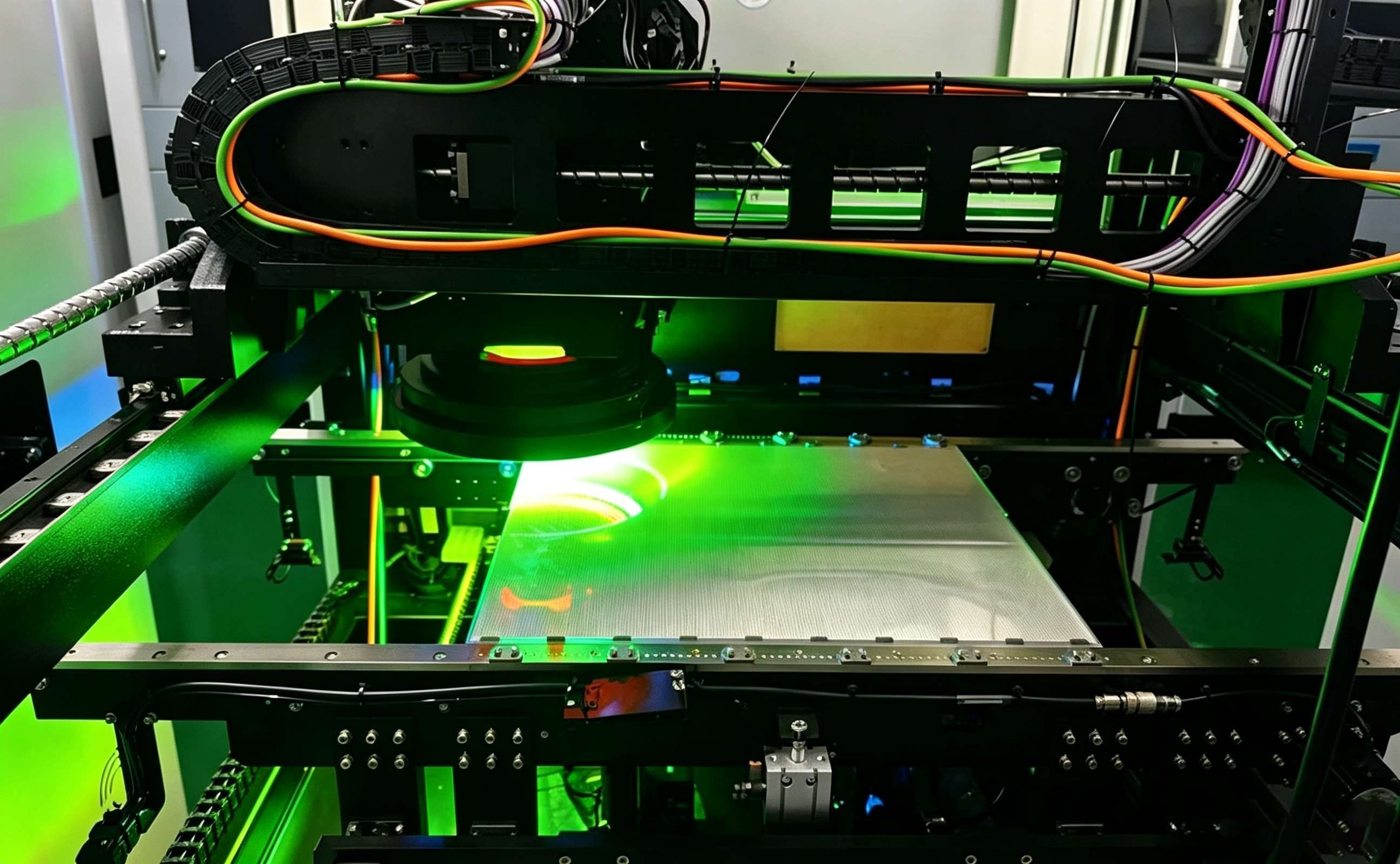

AOI testing equipment

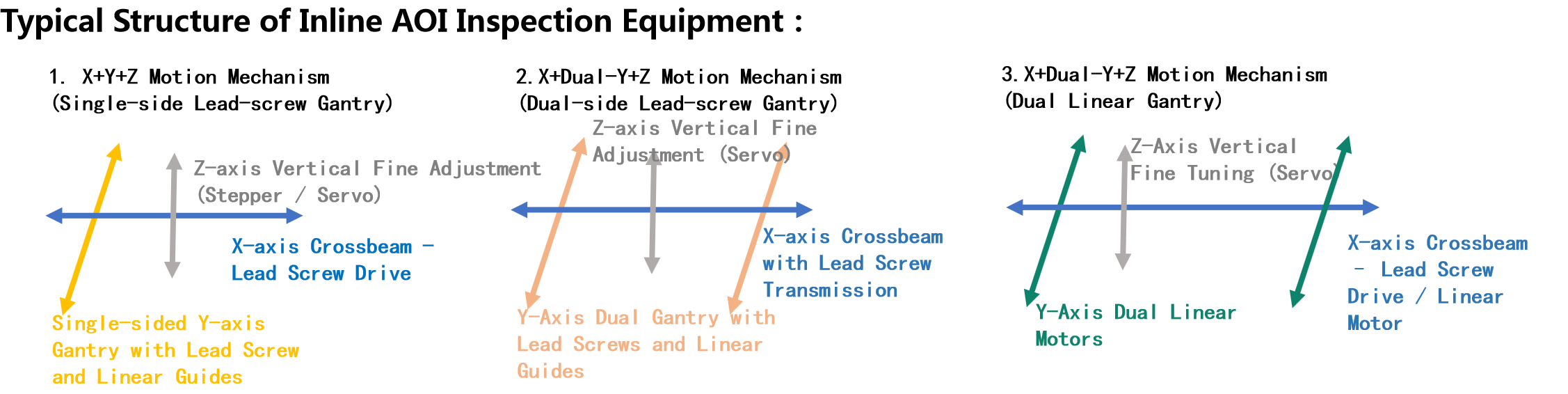

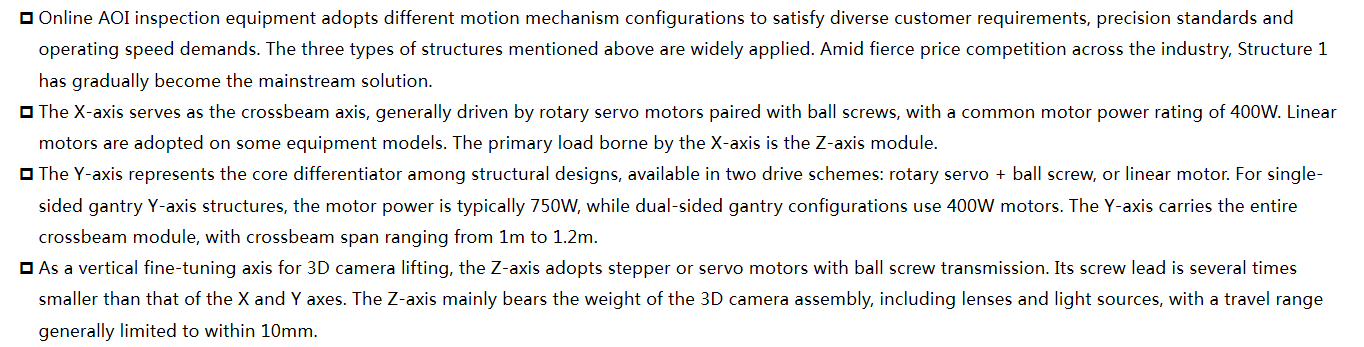

Online AOI inspection equipment is mostly deployed after reflow ovens in SMT production lines, with some lines adopting pre-reflow installation. Based on vision system configurations, it is divided into 2D-AOI and 3D-AOI. The AOI machine mainly comprises a vision inspection system and motion mechanism. Its multi-angle cameras scan solder joints, and AI algorithms compare captured images with standard templates to detect defects including cold solder joints, component offset and short circuits. T

Solution Overview

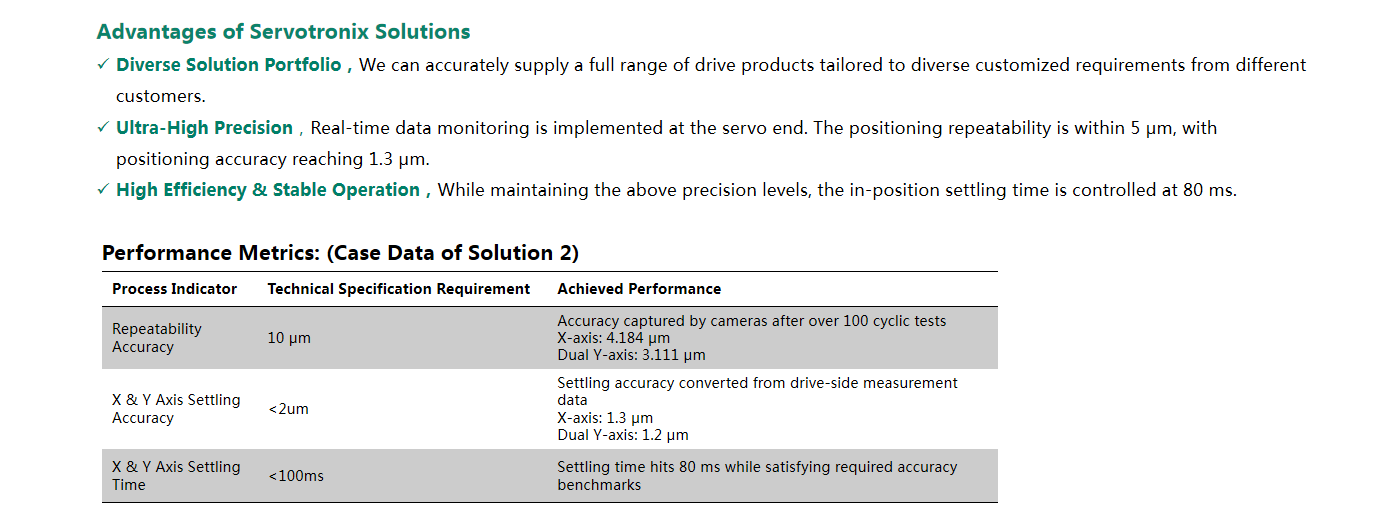

Solution Advantages

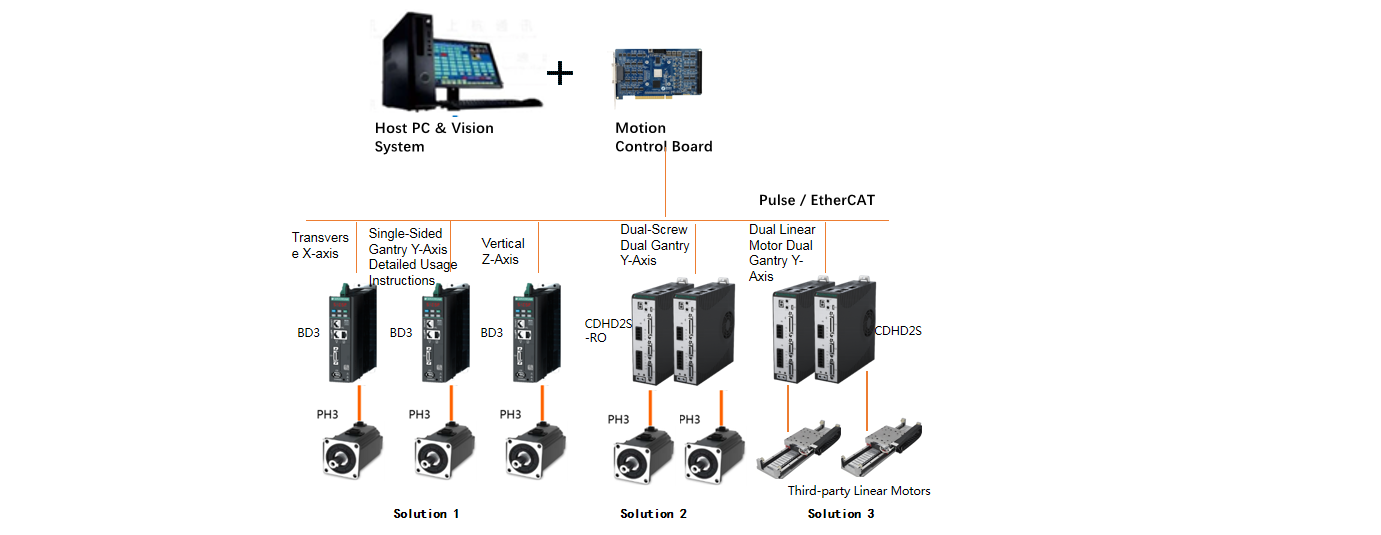

Solution Topology

Core Products

BD3E

BD3E-AP

PH3E/S系列

PH3E/S

CDHD2S-RO

CDHD2S-EC

BD3E

BD3E-EB

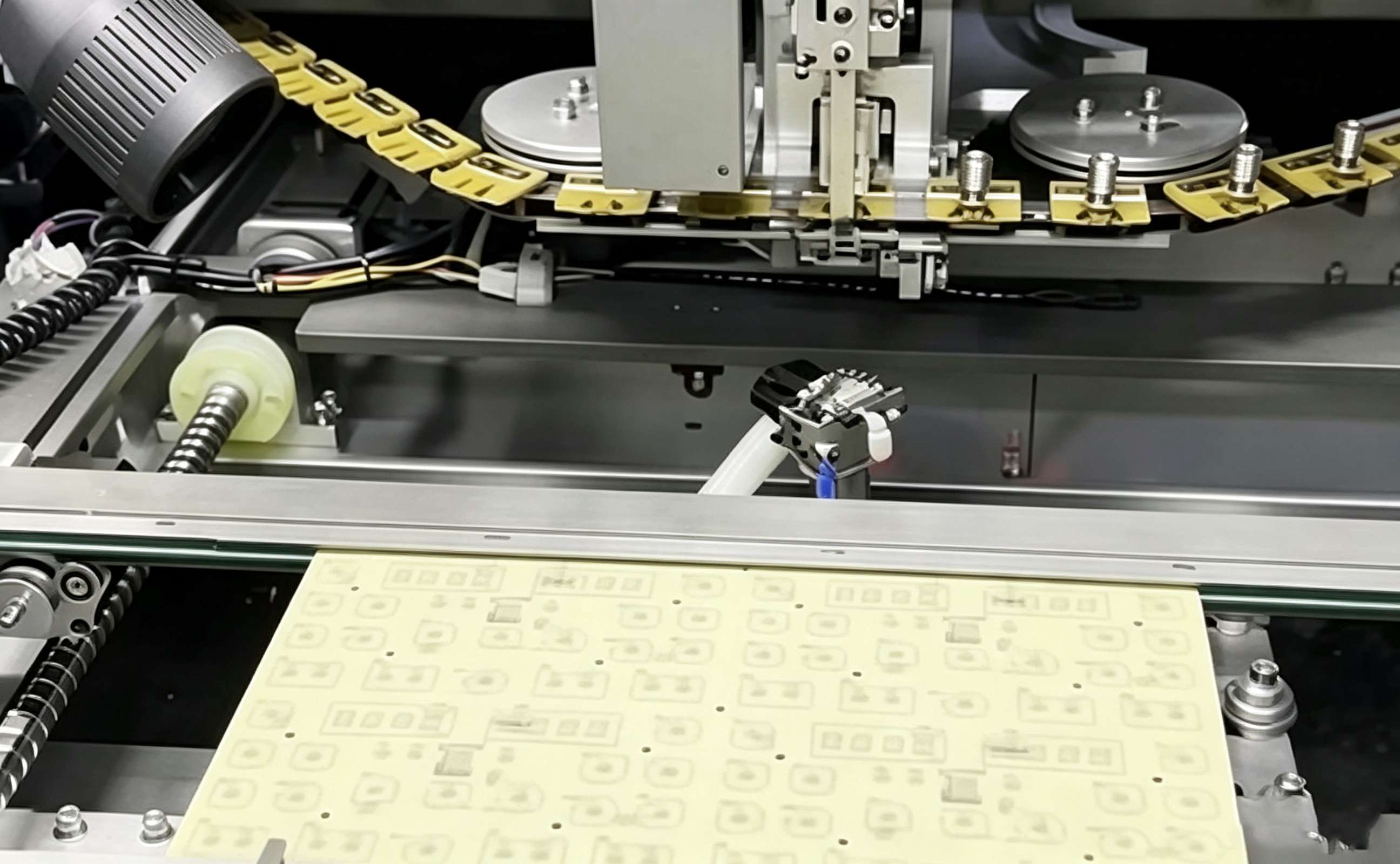

Plug in machine equipment

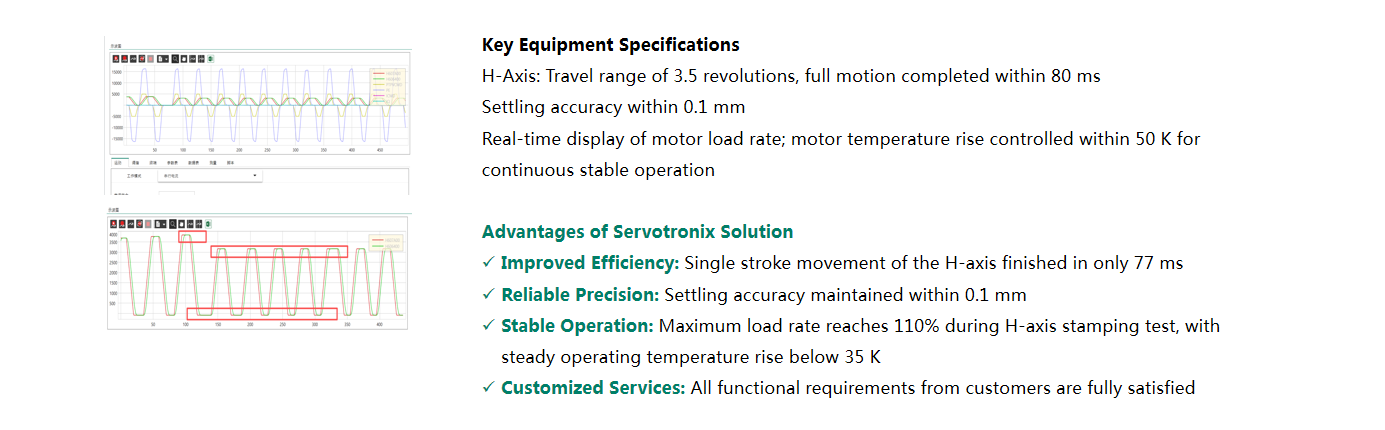

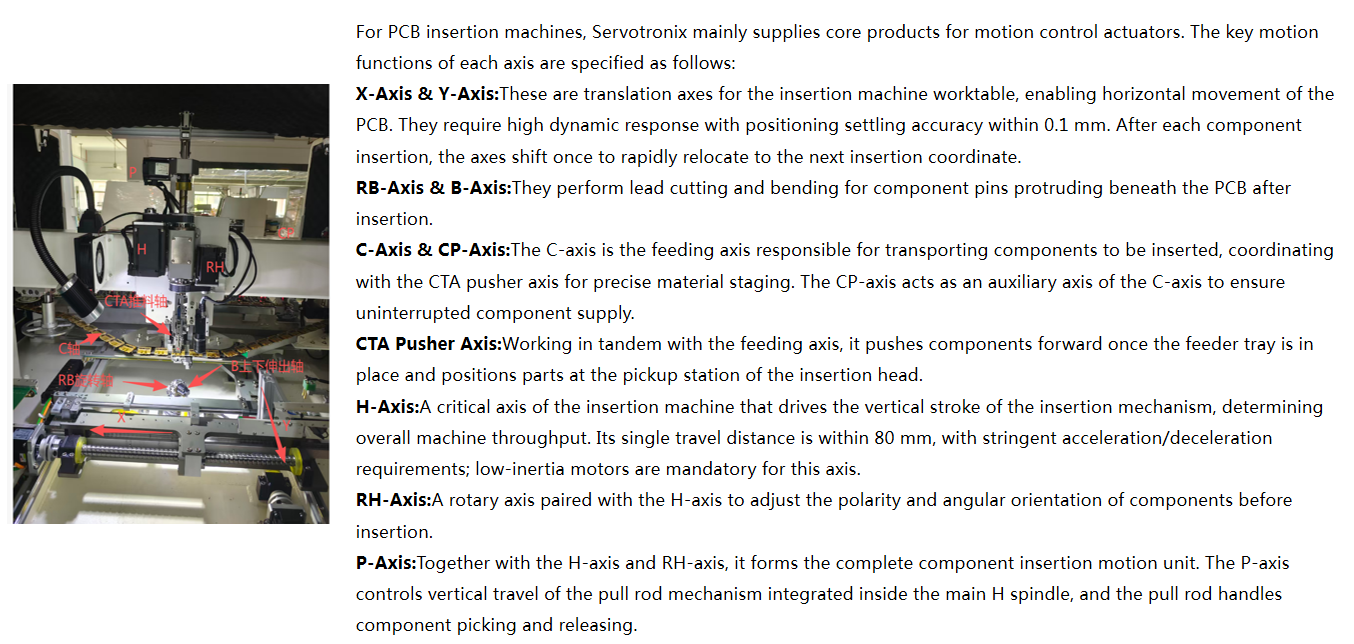

As core automatic equipment for electronic manufacturing and an essential supplement to SMT lines, the PCB insertion machine precisely mounts through-hole components such as resistors, capacitors and LEDs on circuit boards. Integrated with feeding, insertion, positioning, pin trimming and vision systems, it is centrally controlled by an industrial computer for high-precision automatic insertion.

Solution Overview

Solution Advantages

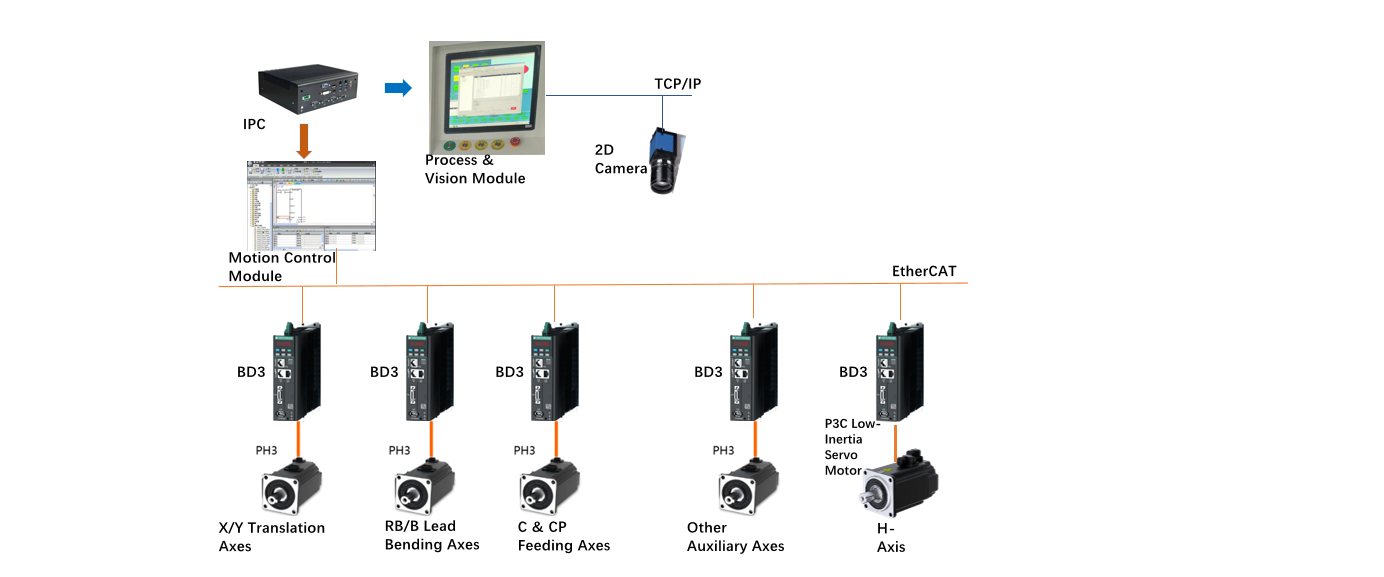

Solution Topology

Core Products

PH3E/S系列

PH3E/S

P3C系列

P3C

BD3E

BD3E-AP

BD3E

BD3E-EB
